vocaDB Tooltip

The following graphics shows different tooltips with translations:

Searching for the meaning of a particular word can be easier using a tooltip. Tooltip works by either using double click or long press on a word.

Double Click

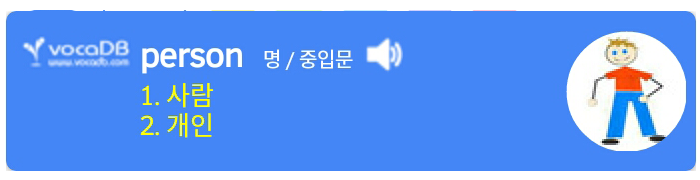

By double clicking a word, a popup will show which contains the image, part of speech, sound and meaning of the word.

The following code shows how to make a request using the Tooltip Word API.

/**
 * Method to get Tooltip Word from API
 */
private class TooltipWord extends AsyncTask {
	private String sSource;
	private String sSourceLanguage;
	private String sTargetLanguage;
	private int iReverse;

	public TooltipWord(String _source, String _sourceLang, String _targetLang, int _reverse) {
		this.sSource = _source;
		this.sSourceLanguage = _sourceLang;
		this.sTargetLanguage = _targetLang;
		this.iReverse = _reverse;
	}

	@Override
	protected void onPreExecute() {
		progressBar.setVisibility(View.VISIBLE);
		super.onPreExecute();
	}

	@Override
	protected JSONObject doInBackground(String... args) {
		new ServiceHandler();
		JSONParser jParser = new JSONParser();

		// Construct API Parameters
		int level = prefs.getInt("level", 21);
		nameValuePair = new ArrayList(10);
		nameValuePair.add(new BasicNameValuePair("slang", sSourceLanguage));
		nameValuePair.add(new BasicNameValuePair("tlang", sTargetLanguage));
		nameValuePair.add(new BasicNameValuePair("level",String.valueOf(21)));
		nameValuePair.add(new BasicNameValuePair("q", sSource));
		nameValuePair.add(new BasicNameValuePair("d", "1"));

		// Debug parameters
		AQUtility.debug("TOOLTIP WORD PARAMETERS:", nameValuePair);

		JSONObject json = jParser.getJSONFromUrl(Constants.TOOLTIP_WORD_URL, nameValuePair);
		return json;
	}

	@Override
	protected void onPostExecute(JSONObject json) {
		AQUtility.debug("Tooltip Word Result", json);
		progressBar.setVisibility(View.GONE);
		try {
			int returnType = json.getInt("type");
			if (returnType == 0) {
				speakerImageView.setVisibility(View.GONE);
				txt_meaning.setText("No result(s) found.");
				txt_meaning.setGravity(Gravity.CENTER);
			} else if(returnType > 0) {
				// Check for contents object
				if (!json.getString("contents").equals("0")) {
					JSONObject contents = json.getJSONObject("contents");
					if (!contents.getString("word").equals("0")) {
						JSONObject words = contents.getJSONObject("word");
						txt_voca.setTypeface(Typeface.create(VocaDBUtils.setNationFont(targetLang), Typeface.BOLD));
						txt_voca.setText(words.getString("voca"));
						txt_part.setText(words.getString("part") + " / " + words.getString("level"));
						speakerImageView.setVisibility(View.VISIBLE);
						txt_meaning.setTypeface(Typeface.create(VocaDBUtils.setNationFont(targetLang), Typeface.NORMAL));
						txt_meaning.setText(VocaDBUtils.displayMeaning(words.getString("voca"), words.getString("means"), targetLang));
						txt_meaning.setGravity(Gravity.LEFT);
						if (words.getString("image").equals(""))
							image_imageview.setVisibility(View.GONE);
						else {
							StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
							StrictMode.setThreadPolicy(policy);

							URL url = new URL(Constants.VOCA_URL + "small/" + words.getString("image") + ".jpg");
							Bitmap bmp = BitmapFactory.decodeStream(url.openConnection().getInputStream());
							image_imageview.setImageBitmap(bmp);
							image_imageview.setVisibility(View.VISIBLE);
							AQUtility.debug("Image URL", Constants.VOCA_URL + "word/" + words.getString("image") + ".jpg");
						}
					}
				}
			}
		} catch (Exception e){
			e.printStackTrace();
		}

		super.onPostExecute(json);
	}
}

Long Press

Another method to get the meaning of a word/words is by using long press. When you long press on a word, the tooltip menu will show. It contains the search button to make a request to the API, color buttons to highlight the selected text and a copy button if you want to simply copy the text.

You have two options when you long press a word, first is getting the relative words and the second one is extracting the word list.

Relative words means all vocabulary words that is connected or having relation to the selected word. In this example, the selected word is person.

Word list extraction means listing all unique words found in a text or sentence. In this example, the selected text is "To seize a person for legal action".

The following code shows how to make a request using the Tooltip Text API.

/**
 * Method to get Tooltip Text from API
 */
private class TooltipText extends AsyncTask {

	private String sSource;
	private String sSourceLanguage;
	private String sTargetLanguage;
	private int iReverse;

	public TooltipText(String _source, String _sourceLang, String _targetLang, int _reverse) {
		this.sSource = _source;
		this.sSourceLanguage = _sourceLang;
		this.sTargetLanguage = _targetLang;
		this.iReverse = _reverse;
	}

	@Override
	protected JSONObject doInBackground(String... args) {
		new ServiceHandler();
		JSONParser jParser = new JSONParser();

		// Construct API Parameters
		int level = prefs.getInt("level", 21);
		nameValuePair = new ArrayList(10);
		nameValuePair.add(new BasicNameValuePair("slang", sSourceLanguage));
		nameValuePair.add(new BasicNameValuePair("tlang", sTargetLanguage));
		nameValuePair.add(new BasicNameValuePair("level",String.valueOf(21)));
		nameValuePair.add(new BasicNameValuePair("q", sSource));
		nameValuePair.add(new BasicNameValuePair("d", "1"));

		String url = "";
		// Check query if contains white space
		if (VocaDBUtils.containsWhitespace(sSource)) {
			AQUtility.debug("Contains white space");
			url = Constants.TOOLTIP_TEXT_URL;
		} else {
			AQUtility.debug("No white space");
			url = Constants.TOOLTIP_RELATIVE_WORD_URL;
		}

		// Debug parameters
		AQUtility.debug("TOOLTIP TEXT PARAMETERS:", nameValuePair);

		JSONObject json = jParser.getJSONFromUrl(url, nameValuePair);
		return json;
	}

	@Override
	protected void onPostExecute(JSONObject json) {
		AQUtility.debug("Tooltip Text Result", json);
		try {
			int returnType = json.getInt("type");
			if (returnType == 0) {
				txt_no_result.setVisibility(View.VISIBLE);
				wordButton.setVisibility(View.GONE);
				wordlistView.setVisibility(View.GONE);
				idiomButton.setVisibility(View.GONE);
				idiomListView.setVisibility(View.GONE);
			} else if (returnType > 0) {
				// Check if contents is not empty
				if (json.getString("contents").equals("0") || json.getString("contents").equals("")) {
					txt_no_result.setVisibility(View.VISIBLE);
					wordButton.setVisibility(View.GONE);
					wordlistView.setVisibility(View.GONE);
					idiomButton.setVisibility(View.GONE);
					idiomListView.setVisibility(View.GONE);
				} else {
					JSONObject data = (json.getJSONObject("contents")).getJSONObject("words");
					// Check if relative idioms json exists
					if (data.has("relative_words") && !data.getString("relative_words").equals("")) {
						JSONArray relative_words = data.getJSONArray("relative_words");
						for (int i = 0; i < relative_words.length(); i++) {
							JSONObject item = relative_words.getJSONObject(i);
							Words w1 = new Words(item.getString("voca"), " - " + item.getString("part") + " / ",
									item.getString("level"), item.getString("means"), item.getInt("ilevel"));
							if (wordNotExists(item.getString("voca"))) {
								arrWordlist.add(w1);
							}
						}
						wordButton.setVisibility(View.VISIBLE);
						wordlistView.setVisibility(View.VISIBLE);
						idiomListView.setVisibility(View.GONE);
					} else {
						wordButton.setVisibility(View.GONE);
						wordlistView.setVisibility(View.GONE);
						idiomListView.setVisibility(View.VISIBLE);
						AQUtility.debug("No relative_words");
					}

					JSONObject idioms = (json.getJSONObject("contents")).getJSONObject("idioms");
					// Check if relative idioms json exists
					if (idioms.has("relative_idioms") && !idioms.getString("relative_idioms").equals("")) {
						JSONArray relative_idioms = idioms.getJSONArray("relative_idioms");
						for (int i = 0; i < relative_idioms.length(); i++) {
							JSONObject item = relative_idioms.getJSONObject(i);
							Idioms i1 = new Idioms(item.getString("idiom"), item.getString("level"), item.getString("means"), item.getInt("ilevel"));
							if (vocaDBUtils.idiomNotExists(item.getString("idiom"), arrIdiomList)) {
								arrIdiomList.add(i1);
							}
						}
					} else {
						idiomButton.setVisibility(View.GONE);
						idiomListView.setVisibility(View.GONE);
						AQUtility.debug("No relative_idioms");
					}
				}
			}
		} catch (Exception e){
			e.printStackTrace();
		}

		if(arrWordlist.size()>0) {
			wordButton.setVisibility(View.VISIBLE);
			wordButton.setText("W ("+arrWordlist.size()+")");
			wordDataAdapter.notifyDataSetChanged();
		} else
			wordButton.setVisibility(View.GONE);

		if(arrIdiomList.size()>0) {
			idiomButton.setVisibility(View.VISIBLE);
			idiomButton.setText("I ("+arrIdiomList.size()+")");
			idiomsAdapter.notifyDataSetChanged();
		} else
			idiomButton.setVisibility(View.GONE);

		// Check if both relative words and idioms is empty
		if (arrWordlist.size() == 0 && arrIdiomList.size() == 0)
			txt_no_result.setVisibility(View.VISIBLE);

		super.onPostExecute(json);
	}
}

// API Keys
public static final String TOOLTIP_API_KEY = "YOUR_API_KEY";

Apply for API Key

// API URLs
public static final String BASE_URL = "http://www.vocadb.com/v2_dic/";
public static final String TOOLTIP_WORD_URL = BASE_URL + "api_dic_tooltip_word.php";
public static final String TOOLTIP_RELATIVE_WORD_URL = BASE_URL + "api_dic_relative_word.php";
public static final String TOOLTIP_TEXT_URL = BASE_URL + "api_dic_tooltip_text.php";

httpPost.addHeader("x-voca-apikey", YOUR_API_KEY);

httpPost.setEntity(new UrlEncodedFormEntity(params, "UTF-8"));

Tooltip Word

http://www.vocadb.com/v2_dic/api_dic_tooltip_word.php?slang=en&tlang=en&level=21&q=person&d=1

Tooltip Relative Words

http://www.vocadb.com/v2_dic/pi_dic_relative_word.php?slang=en&tlang=en&level=21&q=person&d=1

Tooltip Text

http://www.vocadb.com/v2_dic/api_dic_tooltip_text.php?slang=en&tlang=en&level=21&q=to+seize+a+person+for+legal+action&d=1

Tooltip Word API Documentation

Tooltip Relative Word Documentation

Tooltip Text API Documentation
